Audio
- Frequency Response: 20 Hz - 20 kHz (+/- 1 dB)
- Dynamic Range: > 109 dB (A-weighted)
- Signal-to-Noise Ratio: > 92 dB (A-weighted)
- Channel Separation: < -88 dB (1 kHz, unity)
-
Headroom:
- Aux: > 15 dB
- Mic Input: > 20 dB
- Outputs: > 15 dB
- Aux: < 0.01% (1 kHz, unity)
- Microphone: < 0.02% (1 kHz, unity)
-
Analog Input
-
Aux:
- +15 dBV (maximum)
- 0 dBV (unity)
-
Microphone:
- -40 dBV (unity)
- -54 dBV (minimum)
-
Aux:
-
Analog Output
-
Master, Balanced:
- +18 dBu (maximum)
- +4 dBu (unity)
- +15 dBu (maximum)
- 0 dBu (unity)
- +18 dBu (maximum)
- +4 dBu (unity)
- < 40 mW
-
Master, Balanced:
-

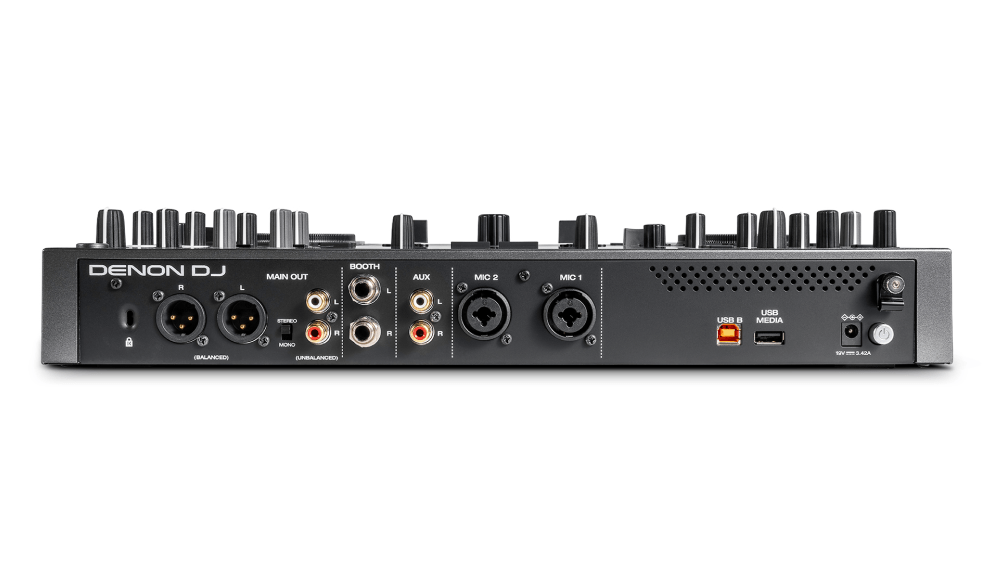

Connections
- (2) XLR outputs (master left/right, balanced)
- (1) RCA output pair (master left/right, unbalanced)
- (2) 1/4" (6.35mm) outputs (booth left/right, balanced)
- (2) 1/4" (6.35mm) outputs (booth left/right, balanced)
- (1) 1/4" (6.35mm) stereo output (headphones)
- (1) 1/8" (3.5mm) stereo output (headphones)
- (1) RCA input pair (line-level, unbalanced)
- (2) XLR + 1/4" (6.35mm) inputs
- (1) USB ports (for USB drives)
- (1) USB port (to computer)
- (1) SD card slot
- (1) Power adapter input
-
Power
- Connection: DC, Center Positive
- Voltage: 19V 3.42A
- Consumption: 30W maximum
- Built-In Rechargeable Battery
-
Dimensions and Weights
-
Product Only:
- Imperial (in): 16.2” W, 10.8” D, 2.1” H
- Metric (mm): 411 W, 274 D, 53 H
- Weight (lbs): 8.11
- Weight (Kg): 3.68
- Imperial (in): 21.06” W, 15.35” D, 6.65” H
- Metric (mm): 535 W, 390 D, 169 H
- Weight (lbs): 11.27
- Weight (Kg): 5.11
-
Product Only:
